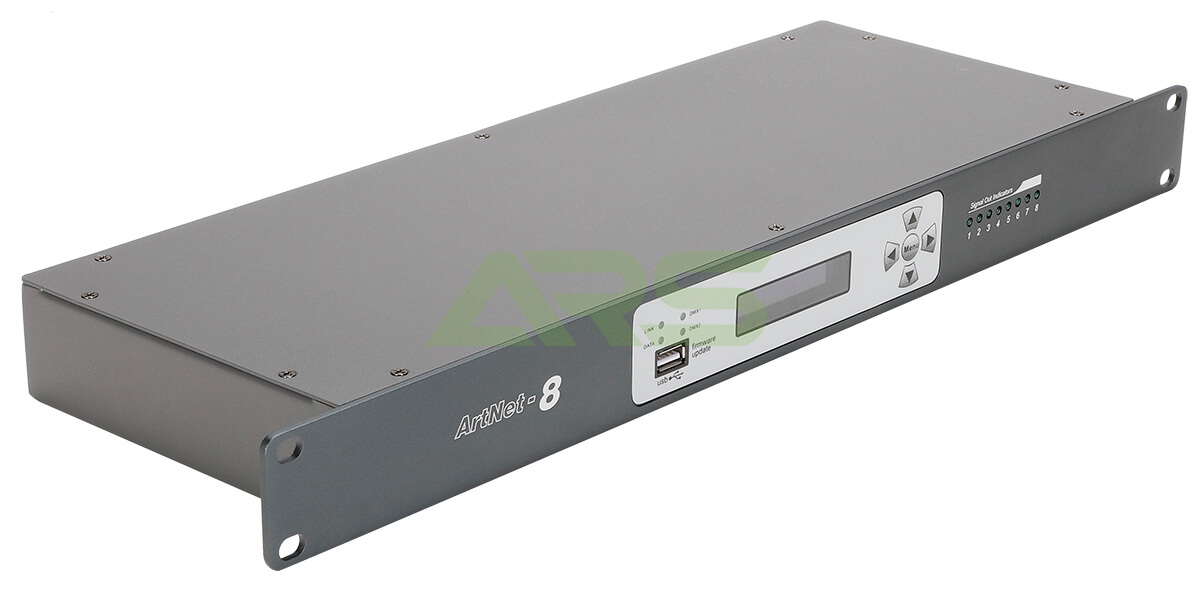

ARTNET-DMX 8ARTNET-DMX Node
- Technical Specifications
- Product Details
Protocol: Art-Net, DMX
Distributes Art-Net data to 8 DMX universes (4096 channels)
Parallel DMX input possible (1024 channels)

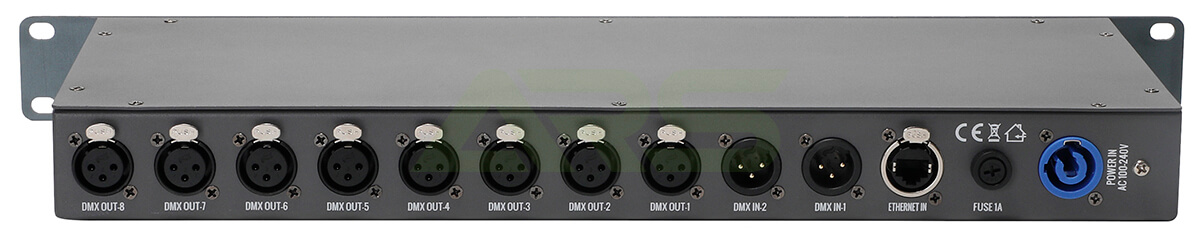

8 x 3Pin or 5Pin XLR female for DMX output
2 x 3Pin or 5Pin XLR male for DMX input
Ethernet port: RJ45, 10/100 Mbps
LED indication for each output channel
USB port for firmware updating
Rack installation 1 U

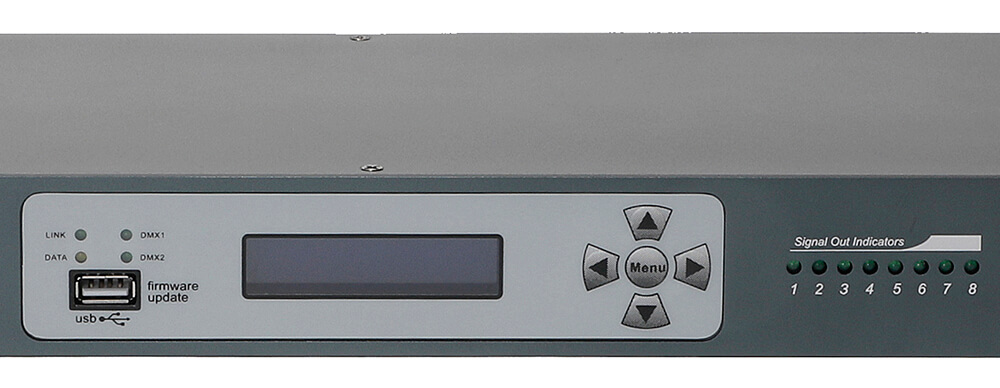

4-button LCD display
Power supply: 100-240 V AC, 50 Hz ~
Power consumption: 6W
Dimension: 483 x 180 x 50 mm
Weight: 2.2 kg
Distributes Art-Net data to 8 DMX universes (4096 channels)
Parallel DMX input possible (1024 channels)
8 x 3Pin or 5Pin XLR female for DMX output
2 x 3Pin or 5Pin XLR male for DMX input
Ethernet port: RJ45, 10/100 Mbps
LED indication for each output channel
USB port for firmware updating
Rack installation 1 U
4-button LCD display
Power supply: 100-240 V AC, 50 Hz ~
Power consumption: 6W
Dimension: 483 x 180 x 50 mm
Weight: 2.2 kg
